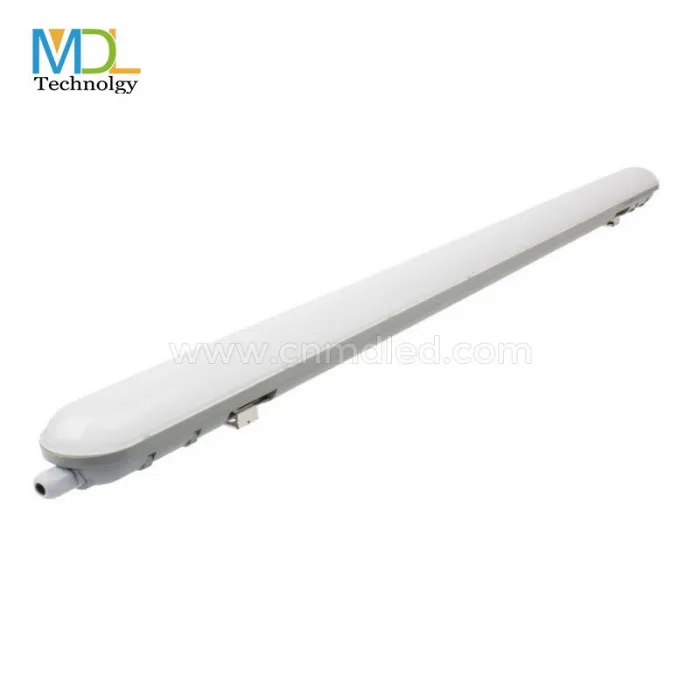

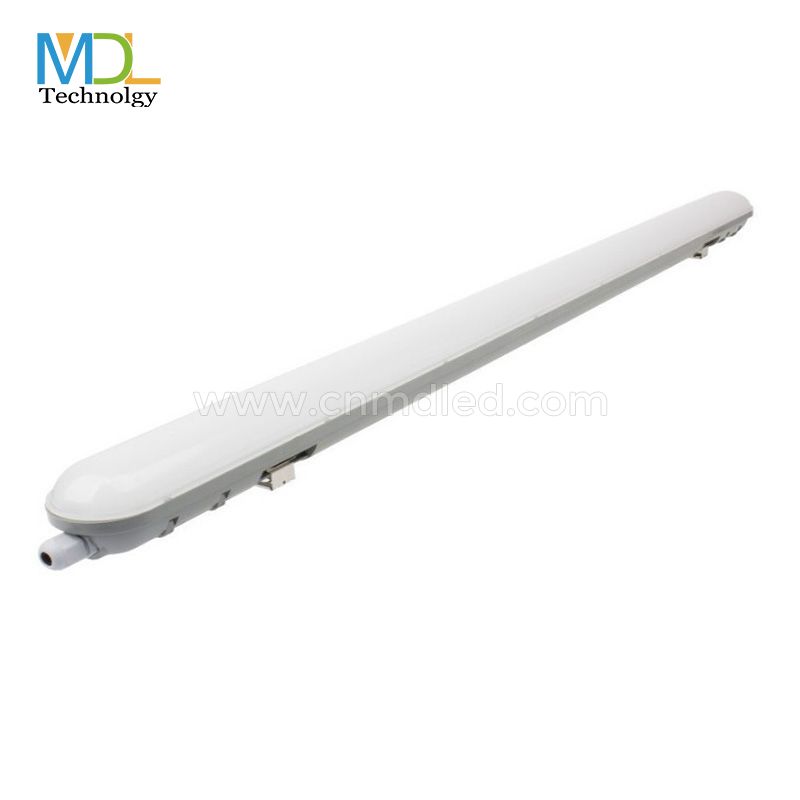

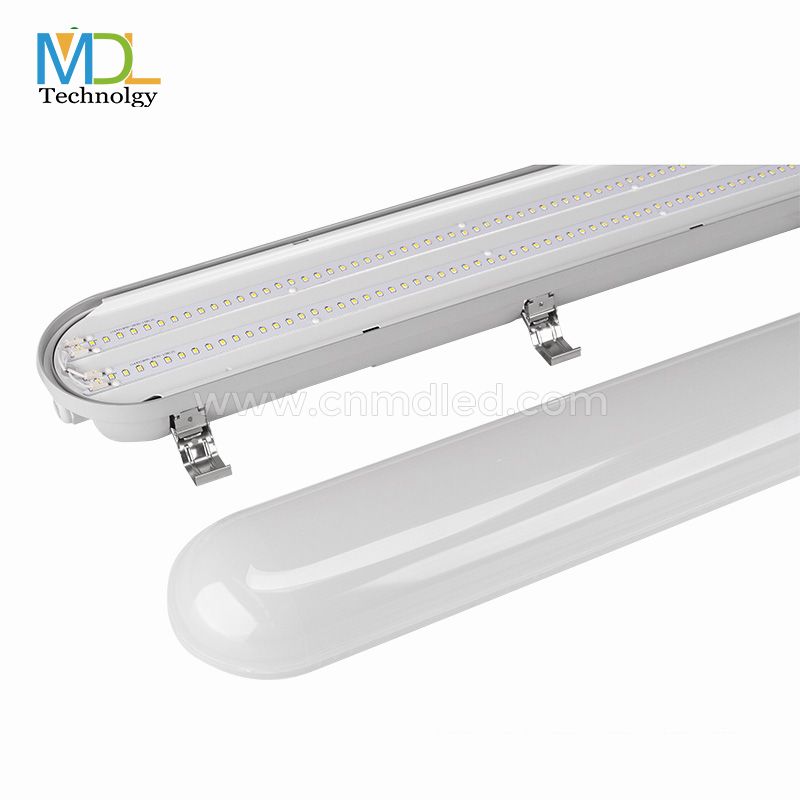

Industry High-power LED Triproof Light Integrate Batten Lighting LED Light Office Linear IP65 Model: MDL-SF-1-A

● Transparent and frosted cover available, no dark spots, uniform luminous surface

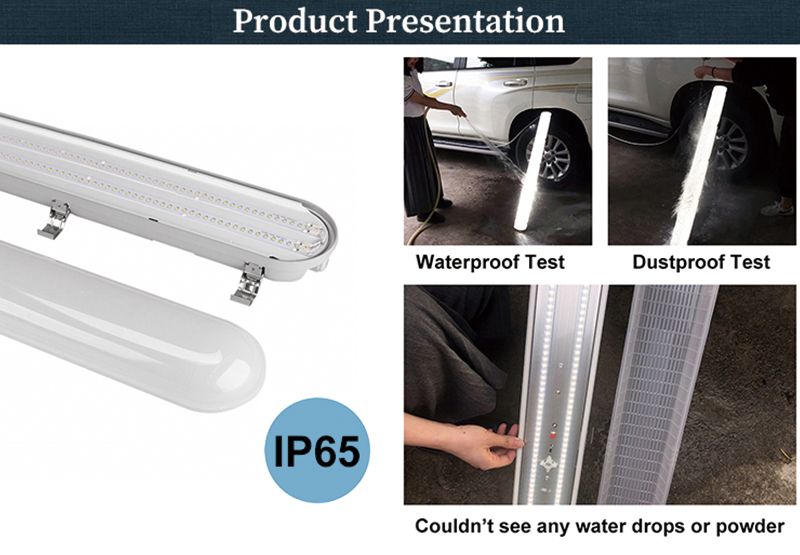

● IP 65 waterproof, dust, corrosion and pressure-proof

● High impact ABS housing ( IK08 ), 3 warranty

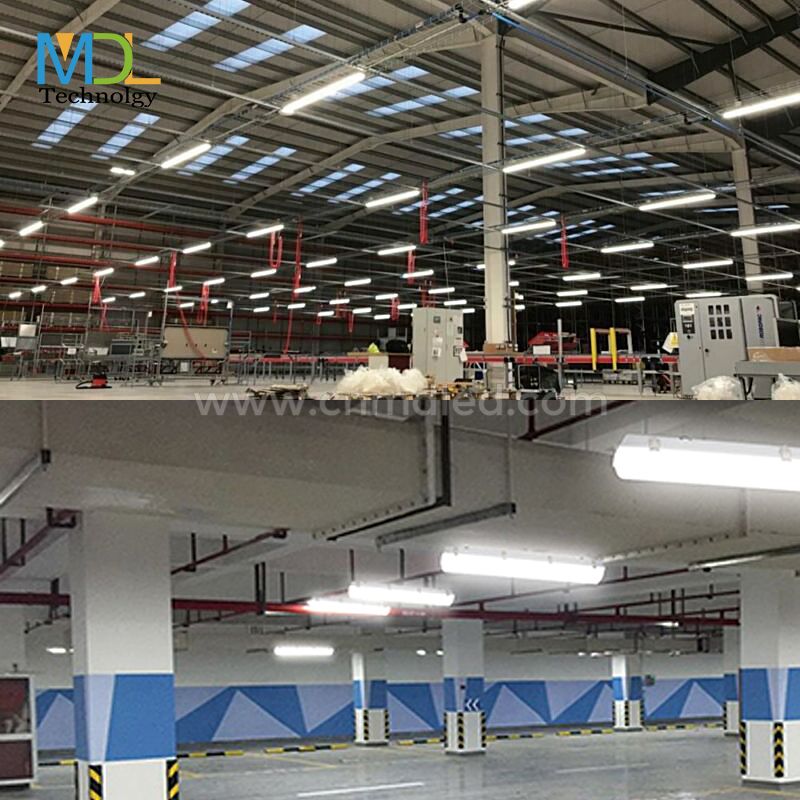

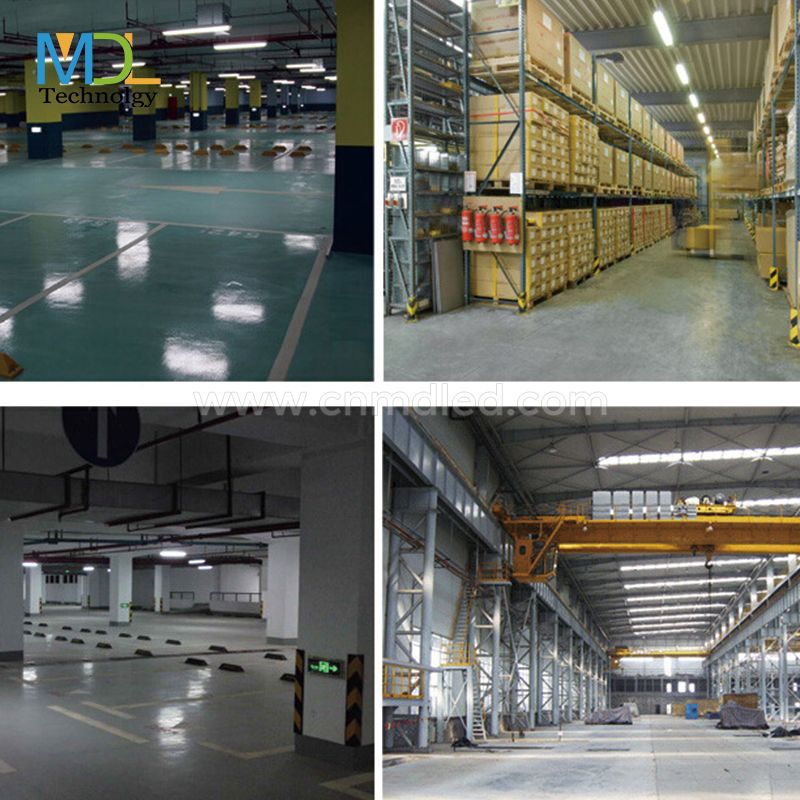

● LED Tri proof light is easy to quickly mount, which save on installation time. It's perfect for the parking garage, warehouse facility, commercial supermarket, pools, car washes, thanks to the salient features that are dustproof, waterproof, and corrosion-proof. Browse down and you will learn more about LED triproof light advantages.

Share:

Industry High-power LED Triproof Light Integrate Batten Lighting LED Light Office Linear IP65 Model: MDL-SF-1-A

MDL-SF-1 Products Datasheet.pdf


LEDS Datasheet.pdf


Vapor proof light fixture from MDL Lighting is waterproof lighting fixture with IP65 waterproof rating for the parking garage, warehouse facility, supermarket, pools, car washes, etc. We offer a 5 years warranty to ensure you have no worries. It has high-performance heatsinks, high luminous efficiency: >130Lm/w. Vapor tight with smart options for microwave sensor and emergency battery backup, which from the best MDL lighting manufacturer in China. What is the vapor tight fixture definition? It must be dustproof, waterproof, pressure-proof, and corrosion-proof.


Industry High-power LED Triproof Light Integrate Batten Lighting LED Light Office Linear IP65 Model: MDL-SF-1-A

PERFORMANCE

● Rated lifetime L80: 50,000 hours

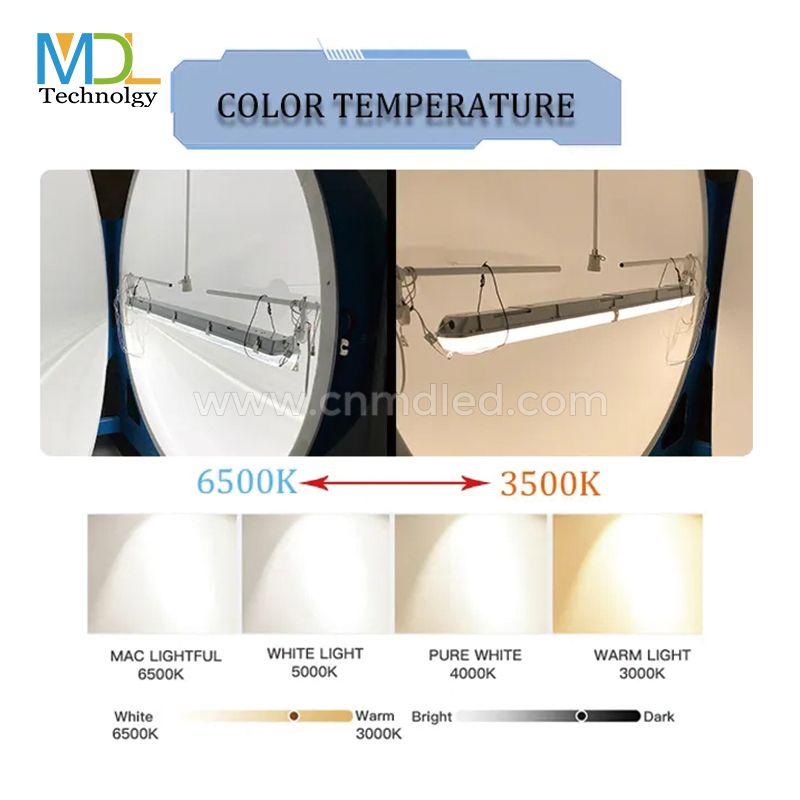

● Color Temperture Range: 2700K, 3000-3500K, 4000-4500K, 5500-6500K

● Lume: 100/120/130LM/W;

● CRI: 70/80/90;

● Dimmable: Triac/0-10V/Dali available;

● Sensor: Mircrowave or Motion sensor optional;

● Emergency battery backup kit: 1HS, 1.5HS, 2HS or 3HS optional

● We can provide Tridonic/Philips/Osram brand or other Driver brand available;

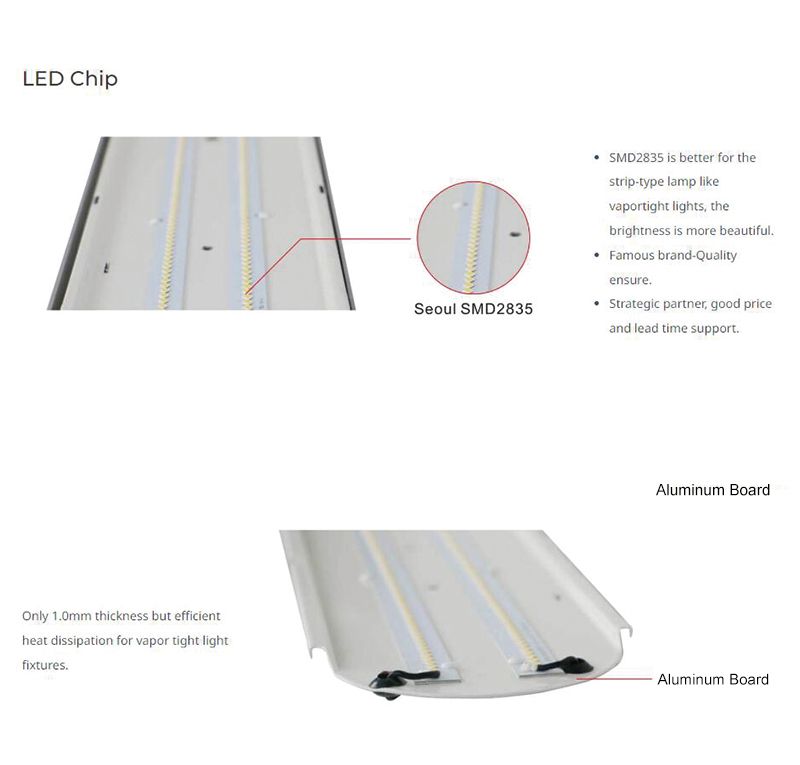

● Material: ABS Housing+PC Cover+Aluminum PCB+Stainless steel clips

ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 120degree

● IP Range: IP65

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<20%

CONSTRUCTION

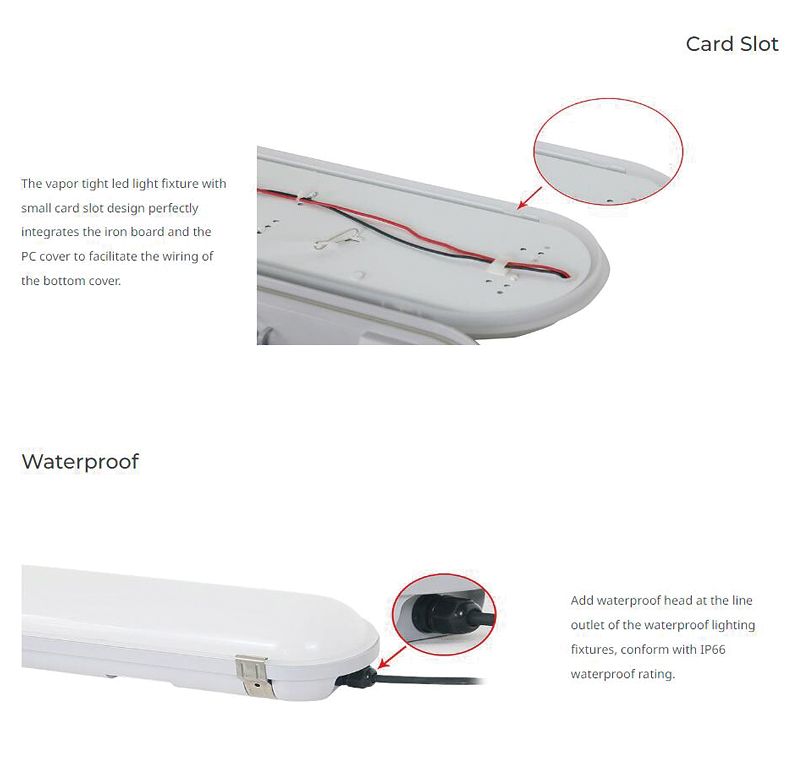

● High quality moulded PC is used for housing and diffuser, and the clips are stainless steel(S/S 304)for better performance. The streamlined desgin of diffuser increases the light efficiency.

● Lightweight constuction allows for quick and easy installation

● Installation: ceiling surface mounted, wall mounted, suspended

● -20℃ ~ +50℃ operating temperature

● -30℃ ~ +70℃ storage temperature

INSTALL ACCESSORIES

● Surface/wall mounted is use surface clips 2pcs/set

● Suspended is use Stainless steel 1.2m 2pcs/set

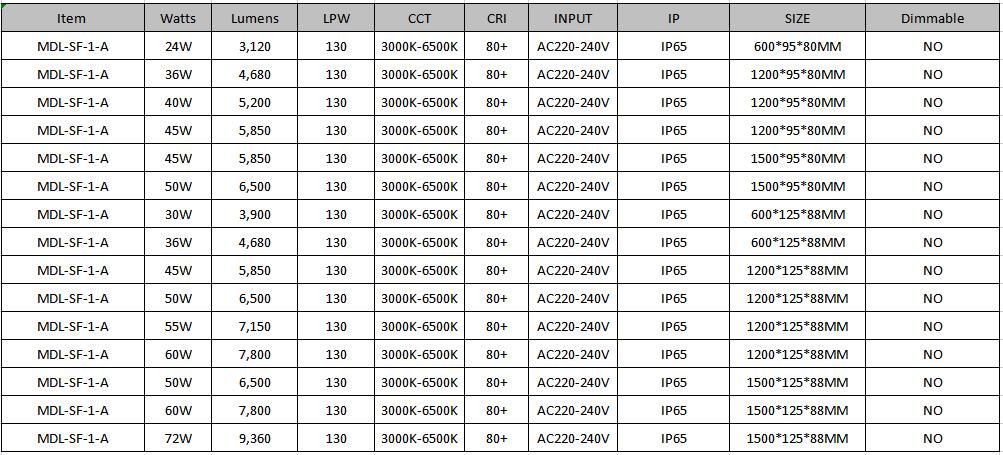

PERFORMANCE SUMMARY

Industry High-power LED Triproof Light Integrate Batten Lighting LED Light Office Linear IP65 Model: MDL-SF-1-A

Industry High-power LED Triproof Light Integrate Batten Lighting LED Light Office Linear IP65 Model: MDL-SF-1-A

Industry High-power LED Triproof Light Integrate Batten Lighting LED Light Office Linear IP65 Model: MDL-SF-1-A

Industry High-power LED Triproof Light Integrate Batten Lighting LED Light Office Linear IP65 Model: MDL-SF-1-A

Industry High-power LED Triproof Light Integrate Batten Lighting LED Light Office Linear IP65 Model: MDL-SF-1-A

Industry High-power LED Triproof Light Integrate Batten Lighting LED Light Office Linear IP65 Model: MDL-SF-1-A

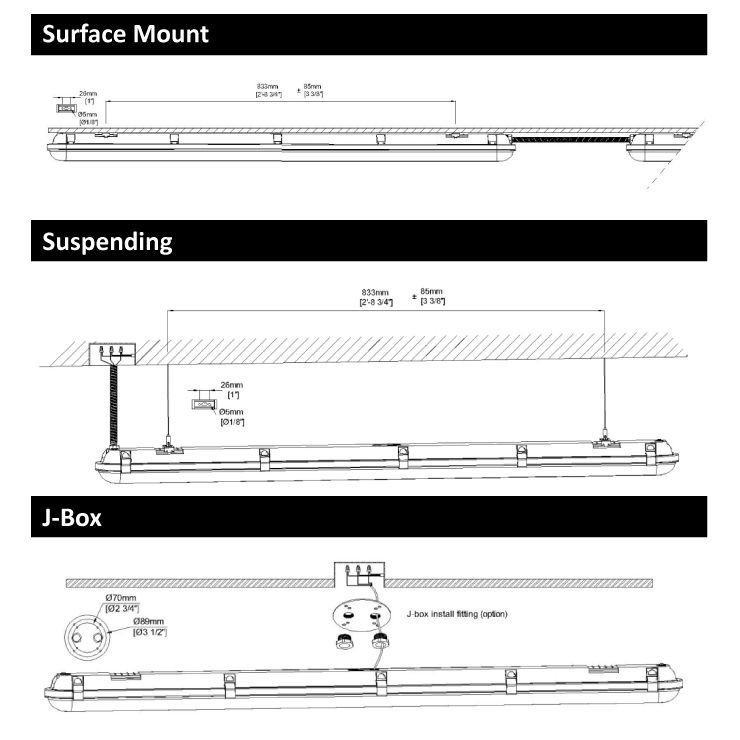

INSTALLATION

Industry High-power LED Triproof Light Integrate Batten Lighting LED Light Office Linear IP65 Model: MDL-SF-1-A
